Automation is no longer the debate in bag counting. Almost every high-volume plant has already moved past a clerk with a tally sheet at the loading bay. The live question now is accuracy and, specifically, whose number survives contact with reality. When a customer files a short-supply claim, an auditor queries a dispatch, or a transporter disputes a load, which system produces a count you can actually defend?
Two approaches dominate the market. Traditional sensor-based counters photoelectric, infrared beam, and load-cell devices have run packing lines for decades. Newer AI-powered bag counting, built on computer vision, takes a fundamentally different route. This article compares them honestly: where each genuinely wins, where each breaks down, and how to choose for your operation.
How Each System Actually Counts

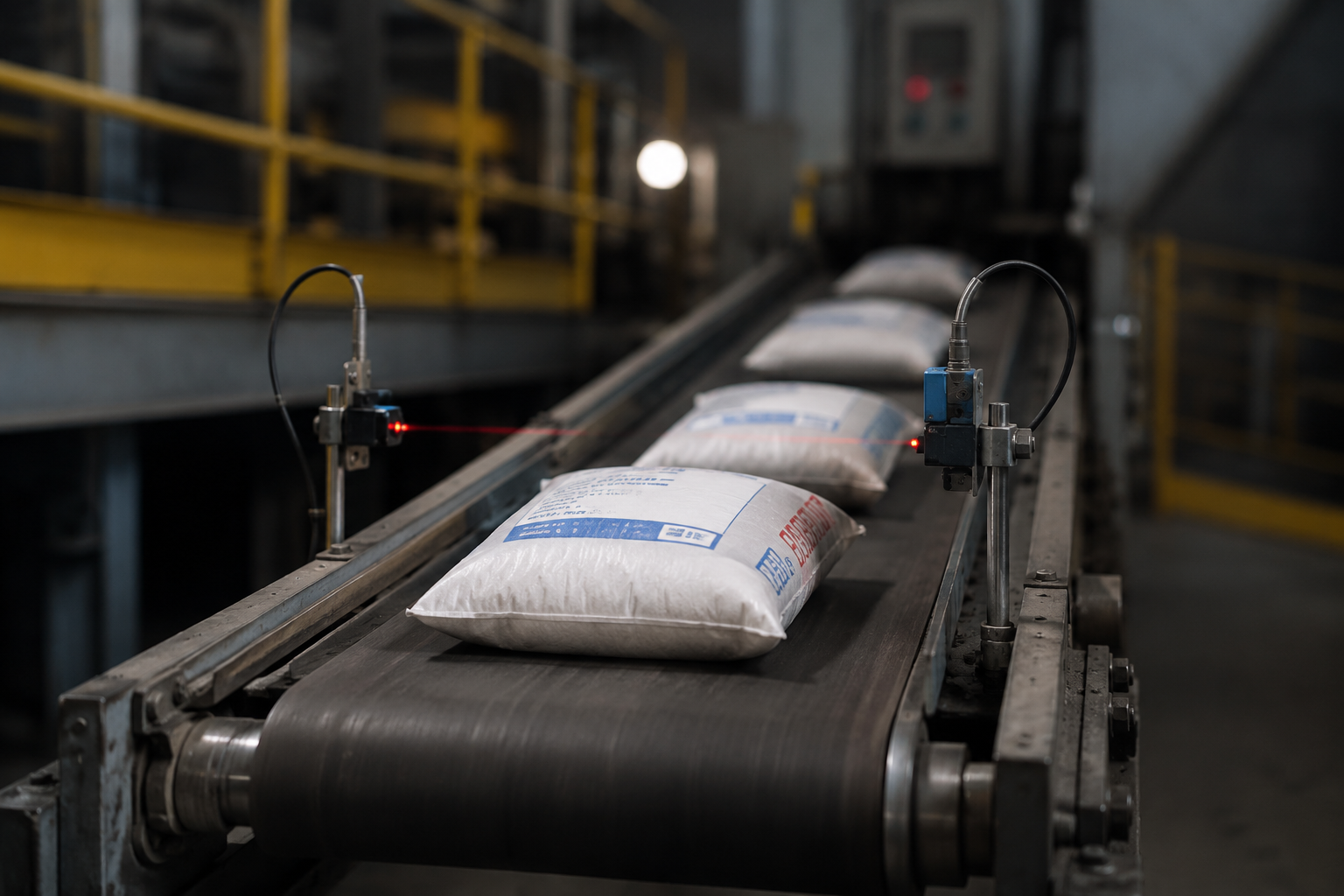

A sensor-based bag counter works on interruption. As each bag passes a fixed point on the conveyor, it breaks a beam or triggers a load-cell pulse, and the counter increments by one. It is a mechanical, deterministic event: bag passes, count rises. Simple, fast, and proven.
Computer vision bag counting works on recognition instead. A camera watches the counting plane, and a trained model detects each bag in the video frame, tracks it across successive frames, and confirms a count only once the bag's movement satisfies a defined path. Rather than reacting to a single interruption, an AI bag counting system interprets the whole scene, which is what lets it operate where a beam simply cannot.
Where Sensor-Based Counters Perform Well
It is worth being fair here, because a serious evaluator will be. On a well-engineered packing line, bags single-file, evenly spaced, with consistent orientation, stable lighting, one direction of travel, a through-beam counter is an excellent instrument. It is fast, inexpensive, low-maintenance, and vendors credibly quote accuracy in the 99.8%-plus band in that specific geometry.
If your entire requirement is to count bags at one constrained point on one clean conveyor, a sensor-based counter will do the job well and cheaply. For many plants, at that one point, it is genuinely good enough. Any honest comparison has to start by conceding that.
Where Sensor-Based Counters Struggle
The problem is that dispatch disputes rarely originate at that clean conveyor point. They originate everywhere else, and that is where beam counting runs into hard limits:
- Overlapping and touching bags. Two bags in contact register as one. A toppled bag is missed or double-counted. High-speed packer discharge degrades the count exactly when volume is highest. This is the single largest accuracy gap on busy lines.
- Unconstrained geometry. Manual porter chains, sling hoists, palletised stacks, stacker discharge, and trucks loaded directly from a godown floor all sit outside a beam counter's working envelope. There, the sensor isn't inaccurate — it's simply inapplicable.
- No evidence. The output is an integer. When a count is challenged, there is nothing to examine: no record of what was counted, when, in what condition, or into which vehicle. Disputes then resolve on commercial leverage, not fact.
- No attribution. A beam knows a bag passed. It does not know that bag belonged to a specific consignment, on a specific vehicle, against a specific gate pass.
- Tamper and drift. Obstruction, misalignment, a deliberate jog, or a pre-shift reset leave no trace. Dust on the optics and vibration cause silent accuracy drift between service intervals.
How AI Vision Handles These Cases
This is where the recognition-based approach earns its place. Because it interprets the scene rather than a single trip-point, Computer Vision Bag Counting addresses the failure modes above directly:
- Instance-level detection separates adjacent or overlapping bags that a beam reads as one, holding accuracy on high-rate, messy discharge.

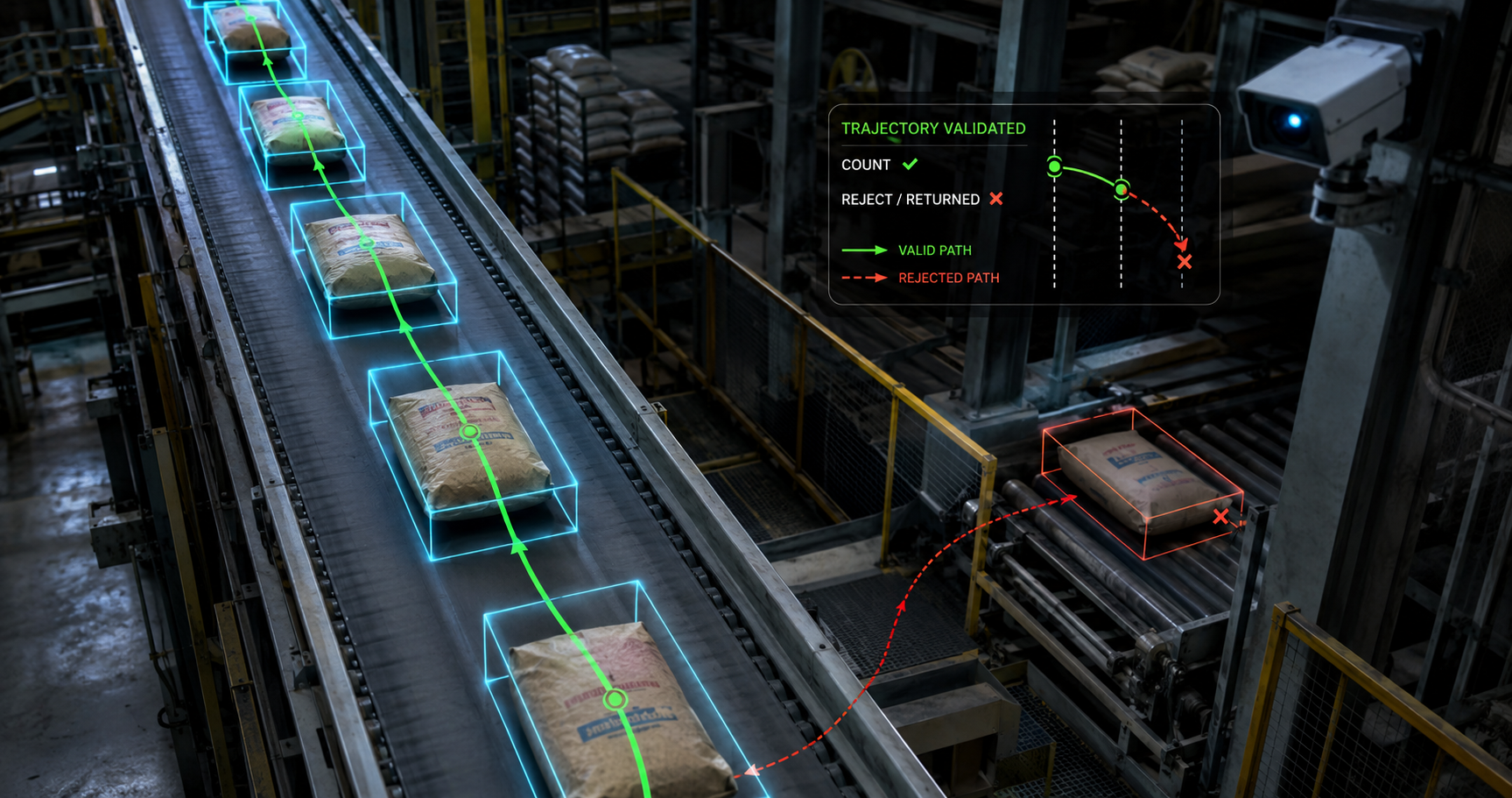

- Trajectory validation counts a bag only when its tracked path meets a defined crossing condition, suppressing both double counts due to tracker jitter and phantom counts from returned or rejected bags.
- Re-identification prevents a bag that leaves and re-enters the frame, or appears on two overlapping cameras, from being counted twice the mechanism that makes unconstrained porter-chain and stacker environments countable at all.
- Visual evidence by default. Every count carries a time-stamped, annotated record, so a challenged number can be reconstructed and defended.
- Condition awareness. Torn, crushed, or underfilled bags are still counted and additionally flagged, and a wrong-SKU bag on the wrong vehicle can be caught before the gate.
Crucially, a well-built system counts on visual profile and motion, not physical height or structural integrity, so a deflated or damaged bag that a height-dependent sensor would misread is still counted correctly.

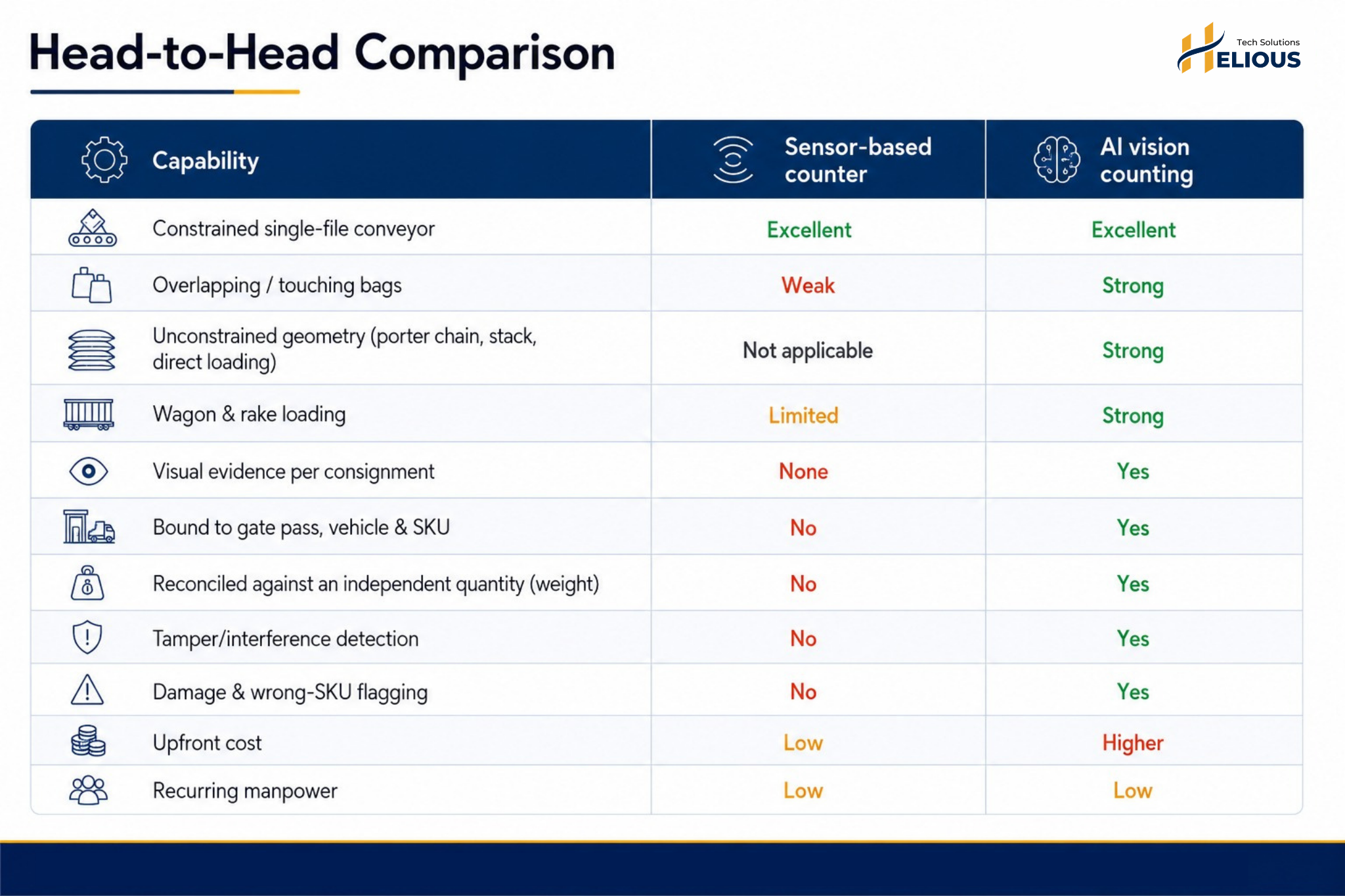

Feature-by-Feature Comparison: AI Vision Counting vs Traditional Sensor Counters
Read the table honestly: the sensor-based counter is the right answer to a narrow question, and it holds its own on upfront cost. AI vision is the right answer when the count has to travel across the whole dispatch chain and survive a dispute.
Which One Should You Choose?
There is no universal winner, and any vendor claiming otherwise is selling, not advising.
Choose a sensor-based counter if your need is genuinely limited to one constrained, single-file conveyor point, disputes are rare, and you don't require an audit trail. It is proven, affordable, and fit for that job.
Choose Smart Bag counting when your reality is messier high throughput with overlapping discharge, manual porter chains, direct truck or wagon loading, frequent short-supply claims, or a need to reconcile physical count against invoice and weight. In those conditions, the higher upfront cost is repaid quickly in avoided claim settlements, recovered product, and eliminated recount downtime. In short: sensors count events; vision counts bags you can prove.
How Helious Approaches AI Bag Counting
Helious Tech Solutions built its AI Bag Counting specifically for the messy end of the chain, and delivers it as the counting module of Smart Store, the Helious warehouse management system, so a count doesn't just get recorded; it updates stock, closes the document, and reconciles against weight.
The design is camera-only and edge-first: fixed cameras run detection, multi-object tracking, trajectory validation, and re-identification on on-premise edge compute, with no beam cutters or position sensors to maintain, and no dependence on plant bandwidth. The models are trained on real bagged-product imagery in industrial conditions: dust plumes, night shift, mixed lighting, deformed and overlapping bags, not on generic public datasets.
What sets it apart is the reconciliation layer. Every consignment closes against three independent quantities: the authorised quantity from your ERP, the physically counted quantity, and a derived weight cross-checked against AI-Unmanned Weighbridge Automation System net weight via the TAT Guard interlock. Because defeating the count alone no longer changes the outcome, the system is tamper-resistant by design and it "fails loud," suspending counting on a blocked camera rather than publishing a number it can't stand behind.
The solution spans seven loading environments from packer discharge and conveyors to manual porter chains, truck bays, and Rake Guard-integrated wagon loading, giving one attributed, evidenced, reconciled count across the entire plant, with time-stamped visual proof retained per consignment.
Conclusion: Accuracy Is About Proof, Not Just Precision
Both technologies count bags. The difference is what happens when the count is questioned. A sensor-based counter can be highly precise in the narrow conditions it was built for, but it produces a bare number with no context and no evidence. An automatic bag counting system counts across every environment in the dispatch chain, attributes each count to a consignment, reconciles it against an independent weight, and retains the proof.
For a single clean conveyor line, a beam counter may be all you need. For a plant where dispatch accuracy, disputes, and audit trails cost real money, accuracy isn't just about counting right; it's about proving you did. That is the shift Helious Tech Solutions is built around.
